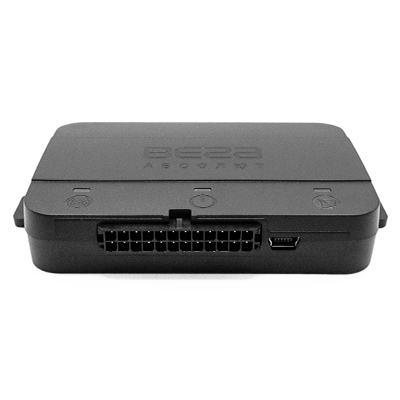

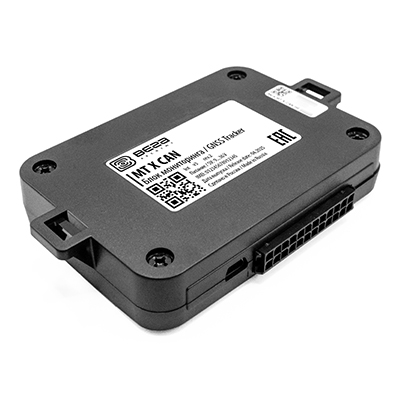

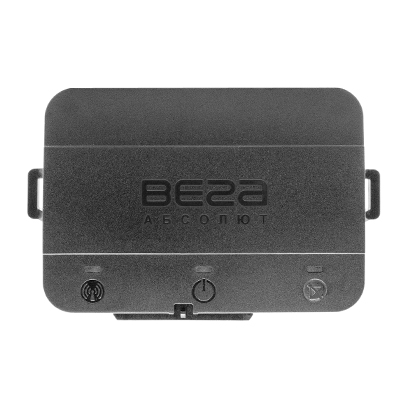

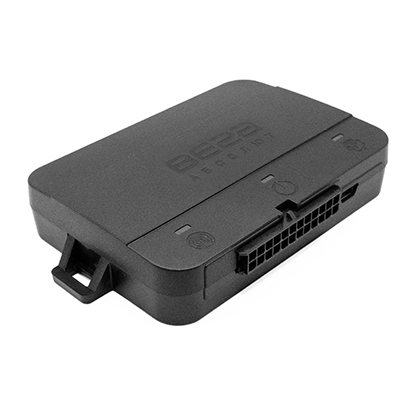

Vega MT X Int - GNSS Tracker with internal antennas

Vega MT X Int is a new generation GNSS Tracker with integrated antennas. Designed to monitor vehicles using the GLONASS/GPS positioning system.
The main advantage is the support of up to 3 CAN buses by the unit own processor, which allows you to get full information about the vehicle.

In the block can be installed 2 slots for SIM cards or 1 slot for a SIM card and 1 SIM chip to choose from. The corresponding option should be indicated when ordering.

The unit has a built-in battery with a capacity of 560 mAh.

../content/en/warranty/3.png
Vega MT X IntVega MT X IntVega MT X Int

Features

  • Built-in Battery
  • Operation with 3 CAN-buses
  • Lin/K-Line interface
  • RS-485 for connecting digital fuel level sensors
  • RS-232 for connecting external devices
  • Four digital outputs of the “open collector” type for connecting actuators (engine blocking, siren, etc.)
  • Three multi-function inputs with operation in analog, digital, pulse, frequency modes
  • Ignition control input
  • 1-Wire for connecting an I-Button reader and external temperature sensors
  • Built-in accelerometer
  • Built-in GSM antenna
  • Built-in GLONASS/GPS antenna
  • GSM modem 850/900/1800/1900, GPRS class 12
  • Sensitive navigation receiver (at least -160 dBm)
  • The error in determining the coordinates is not higher than 2.5 m
  • Mini-USB
  • UART 3,3v
  • Bluetooth 3.0+BLE
  • Tamper sensor
